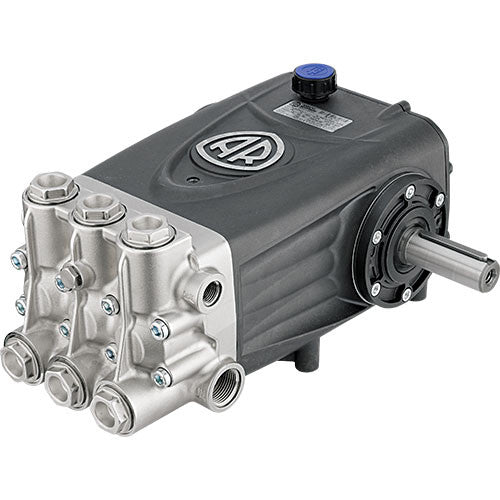

AR RTX70 pump 17GPM @ 3000psi

The AR North America RTX70 is a reliable triplex plunger pump delivering up to 1450 RPM and 18.5 GPM. The pump is designed for maximum longevity, including a high-strength steel pump shaft and low friction zinc-aluminum alloy connecting rods.

Easily connect it to your system via the 1" female inlet and 1/2" female outlet - it's a great choice for industrial cleaning applications!

Features:

• Maximum flow: 18.5 GPM
• Maximum pressure: 2000 PSI
• Maximum speed: 1450 RPM
• Maximum temperature: 140° F
• Oil capacity: 76 oz.
• Stroke: 23 mm
• Bore: 30 mm diameter
• Three-piston plunger design
• Inlet: 1" female
• Outlet: 1/2" female
• Die-cast aluminum alloy pump body and cover
• Rear cover features oil drain outlet
• High-strength steel shaft
• Oversized friction bearings
• One-piece ceramic pistons
• Double gasket sealing system
• Intake and delivery valve plugs
• AR North America item #RTX70
• Weight: 72 lbs.
