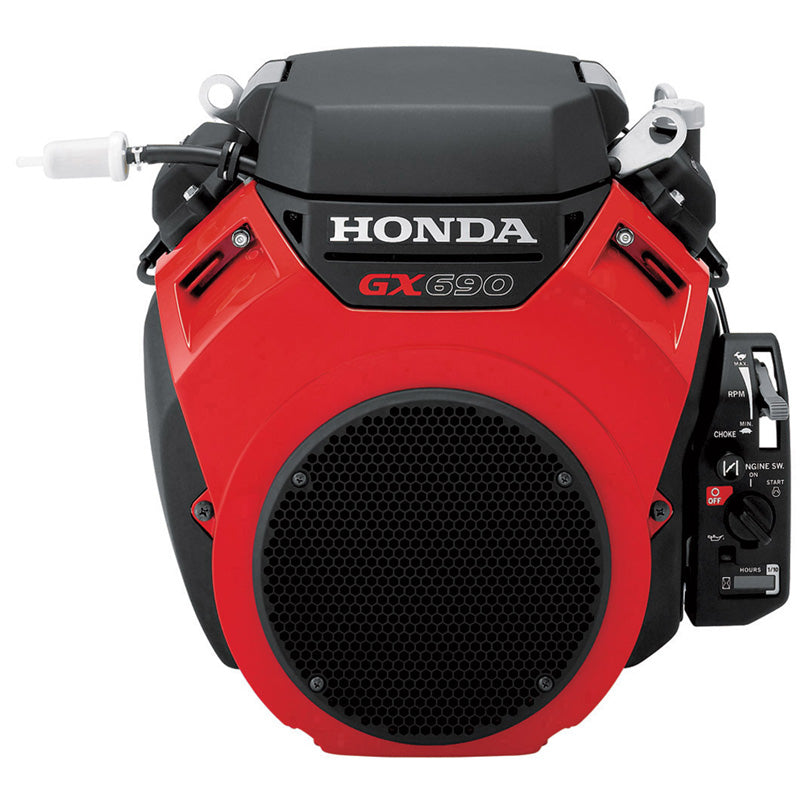

Honda GX690 with 26Amp Charging system

Honda GX690 with 26Amp Charging system

$2,440.80 USD
$2,684.88 USD $2,440.80 USD
Sale Sold out
Shipping calculated at checkout.

Honda GX690 TAPP Horizontal V-Twin OHV Engine with Electric Start, 1-1/8" x 3.78" Crankshaft, 688cc, 22.1 Net HP, 26 Amp Alternator

NOTE

Requires Fuse Holder w/ 40A ATC Fuse in order to start motor.

Engine Information
Brand
Honda
Model Number
GX690RHTAPP
Internal ID
HDA-GX690-TAPP
Warranty
3 Year Residential | 3 Year Commercial
Available to California
Not Available to Ship to California
What's in the Box
Includes engine, owner's manual, regulator, sub-wire harness and exhaust gaskets.
Dimensions
Weight
110.0 lb
Power
Displacement
688cc
Power Output
22.1 HP @ 3600 RPM
Torque
35.6 lb-ft (48.3 Nm) @ 2500 rpm
Crankshaft
Orientation
Horizontal
Type
Straight
Diameter
1-1/8"
Length
3.78"
Dimensions
1-1/8" x 3.78"
End Tapped Size
7/16"-20
Keyway
1/4"
Rotation Direction
Counter-Clockwise
Other Engine Specifications
Starter Type
Electric
Ignition System
Digital CDI with Variable Ignition Timing
Carburetor
Horizontal Two-Barrel Butterfly Valve with Internal Vent
Number of Cylinders
Two
Air Cleaner
Dual Element
Oil Capacity
2.1 qt
Low Oil Alert
yes
Low Oil Shutdown
no
Fuel
Unleaded 86 Octane or Higher
Fuel Tank Capacity
N/A
Fuel Pump
Diaphram
Governor System
Mechanical
Lubrication System
Forced
Bolt Circle
5", 6-1/2", 7-3/4"
Bore x Stroke
78mm x 72mm
Compression Ratio
9.3 : 1
Charging System
26 Amp Alternator
Features
šŸž½
Fuel economy is similar to fuel injection, with the simplicity of carburetion
šŸž½
Digital CDI ignition system with variable timing
šŸž½
Includes a rev limiter to protect against damage from over-revving
šŸž½
Two barrel inner-vent carburetor for more precise fuel metering
šŸž½
Hemispherical combustion chamber delivers rapid combustion
šŸž½
Aluminum push rods with steel tips - lighter weight, lower vibration, and quieter operation
šŸž½
High capacity pump facilitates consistent oil delivery
