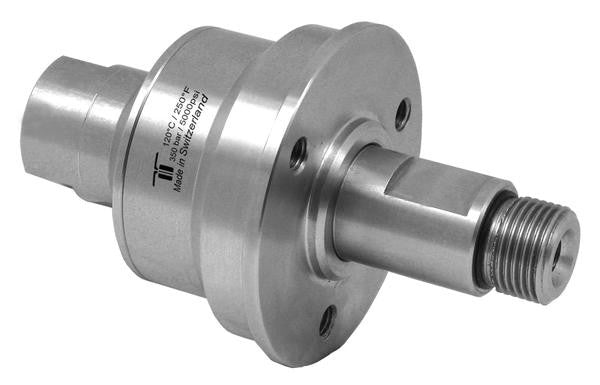

Mosmatic Surface Cleaner Swivel

High rpm, high pressure, self rotating applications, surface cleaners, parts washers

• • Complete stainless steel construction
  • Seal failure warning, through weep holes
  • Sealed stainless steel bearings
  • Carbide seal system

Technical data

• • Pressure: DYCI:5000 psi(35 MPa), DYDI: 7300 psi (50 MPa)
  • Temperature: 250 °F
  • RPM: max. 2’000 rpm)
  • Body: stainless steel
  • Inner part: Stainless steel
  • Seal: carbide
  • Bearing: 2x radial ball bearings, 1x thrust ball bearing
  • Throughput: pH 3-12
  • Medium: filtered 10 microns, compressed air (290 psi)
