X-Jet M5 Twist draws chemical at the nozzle. Includes 15 feet of hose and color-coded proportioners. Choose the orifice for your machine’s GPM.
Specifications and details
Xjet m5 Twist System

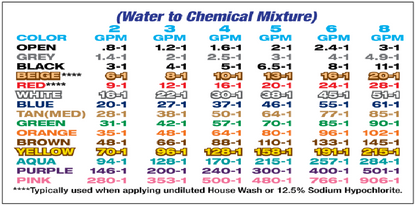

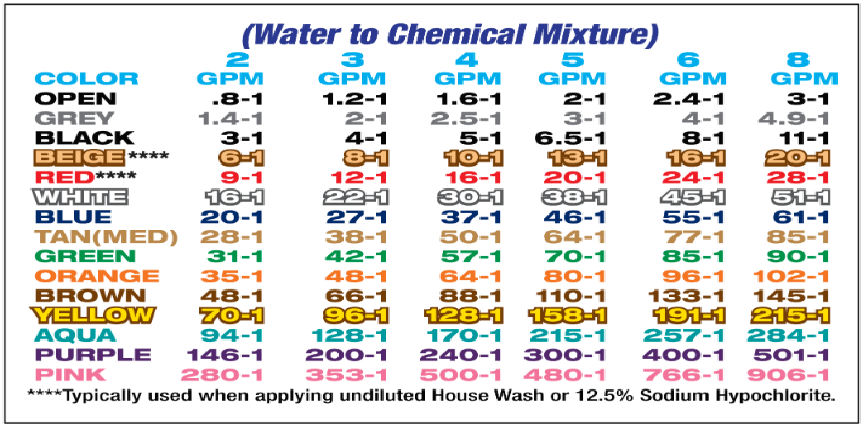

15ft of hose and 14 color-coded chemical proportions.
#7 Oriface 2-2.5 GPM Machines
#9 Oriface 3-3.5 GPM Machines
#13 Oriface 4-4.5 GPM Machines
#16 Oriface 5-6.5 GPM Machines
#20 Oriface 7-8 GPM Machines
#25 Oriface 8.5+ GPM Machines
Keep chemicals out of your power washer, and control spray angle with just a twist, with the XJETM5 nozzle!
This easy to use item attaches to both your pressure washer wand and its own special X-Jet suction hose (included). As pressurized water exits your spray lance, through the X-Jet nozzle, the suction hose draws and proportions the appropriate amount of chemical from a separate tank. The mixing happens in the nozzle! Simply twist the X-Jet M5 to change spray patterns from 5° to 60°, without the need for multiple tips.
Dimensions: 5.38" x 1.25" x 2.38"

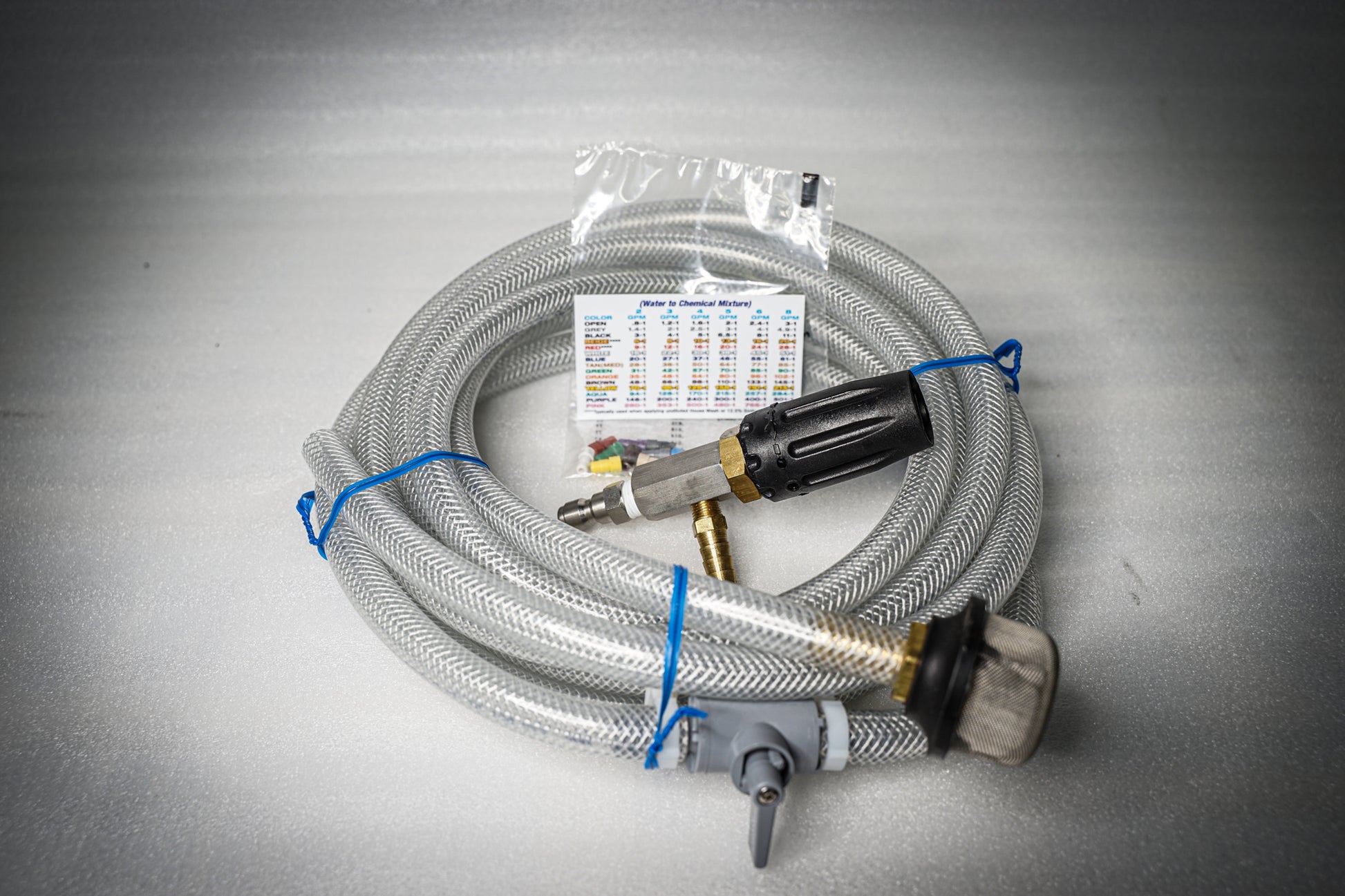

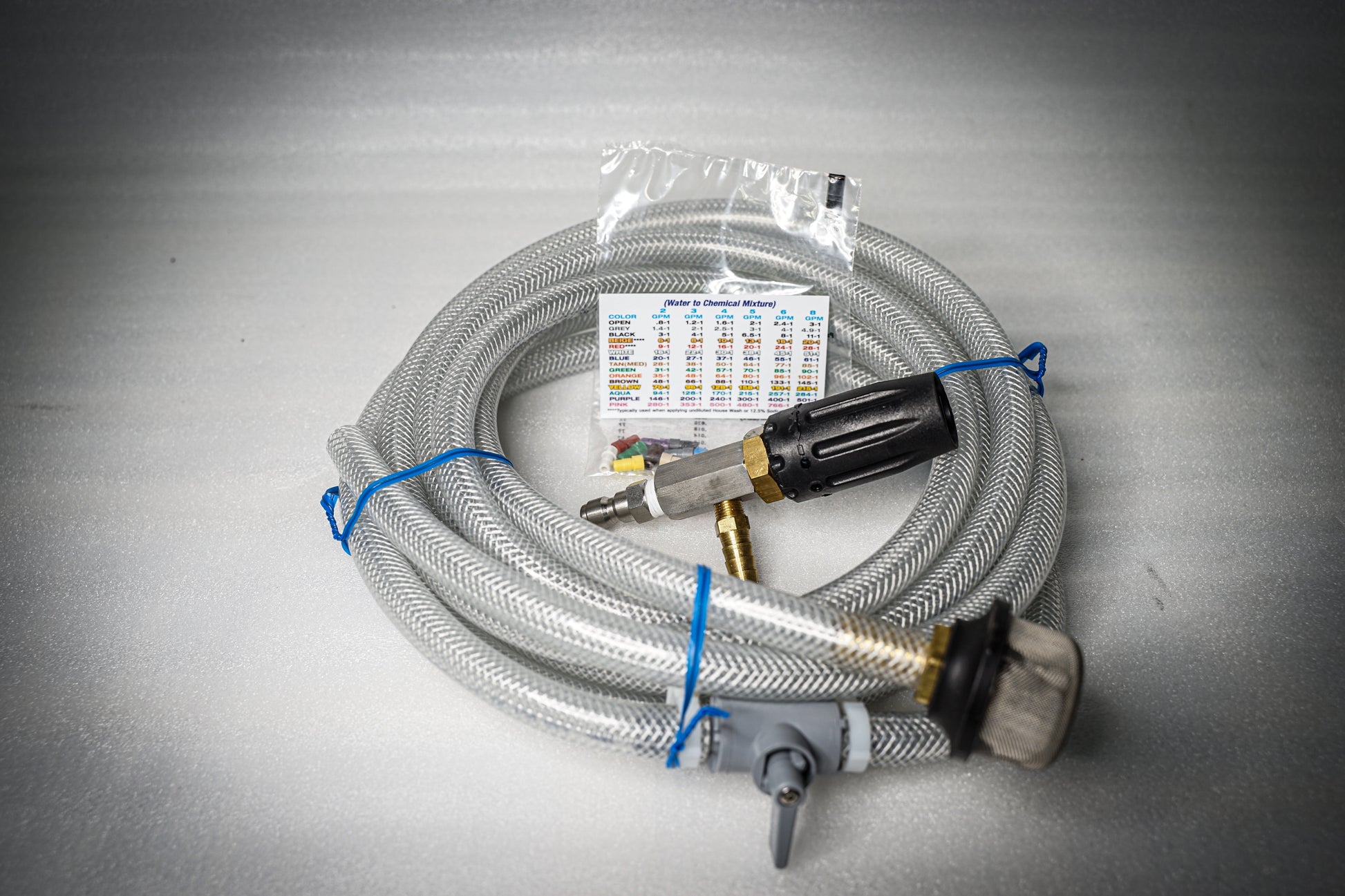

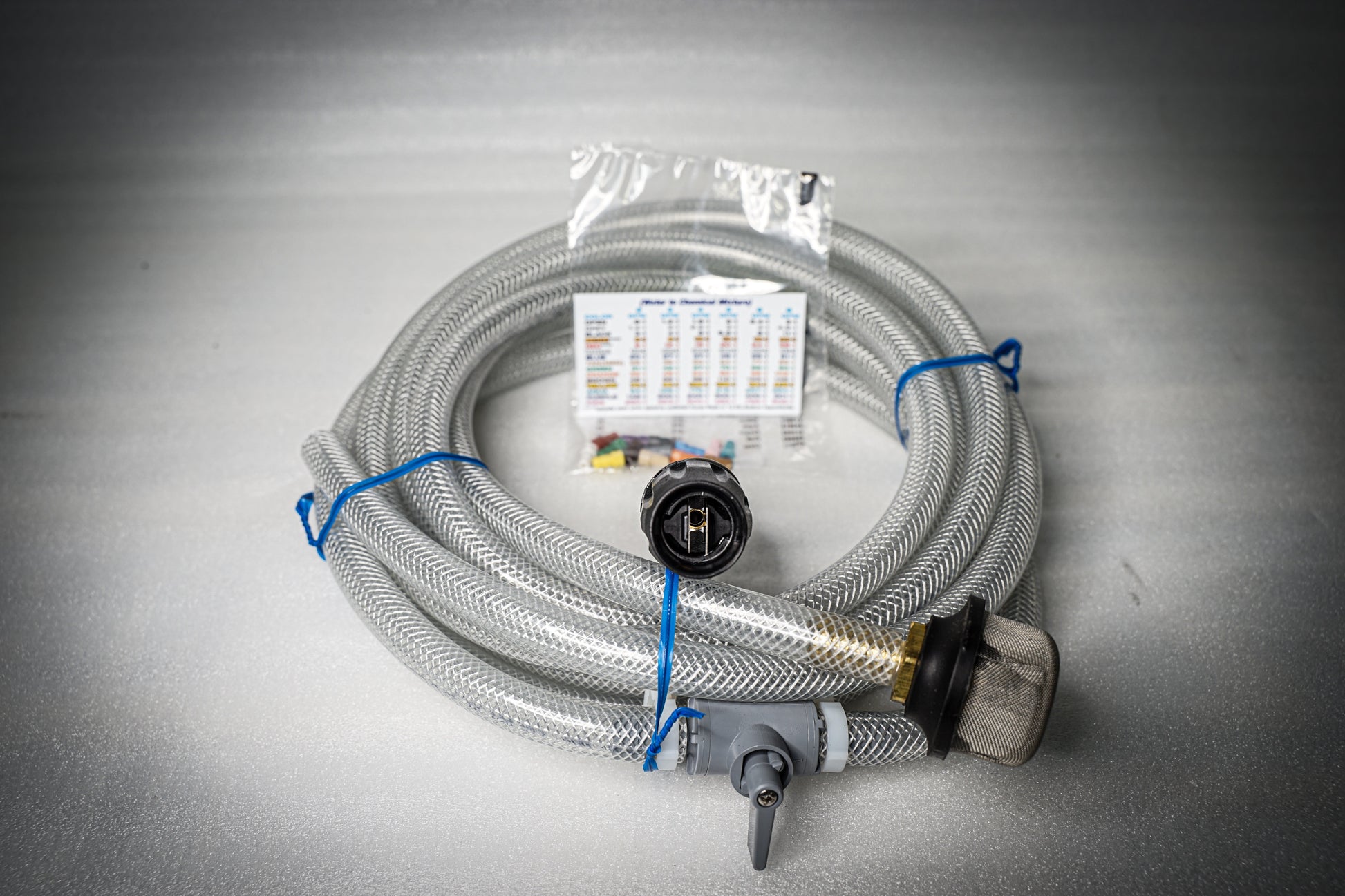

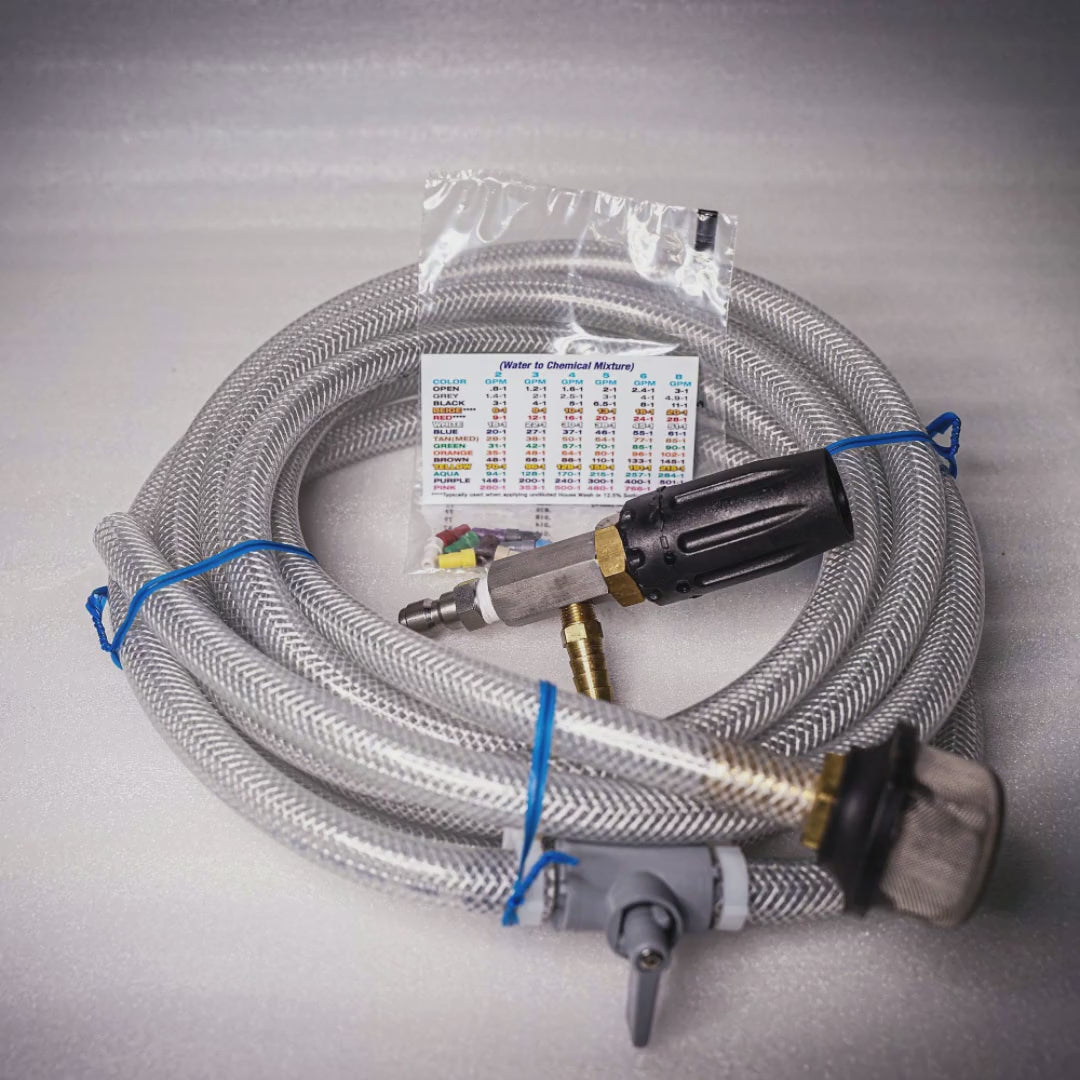

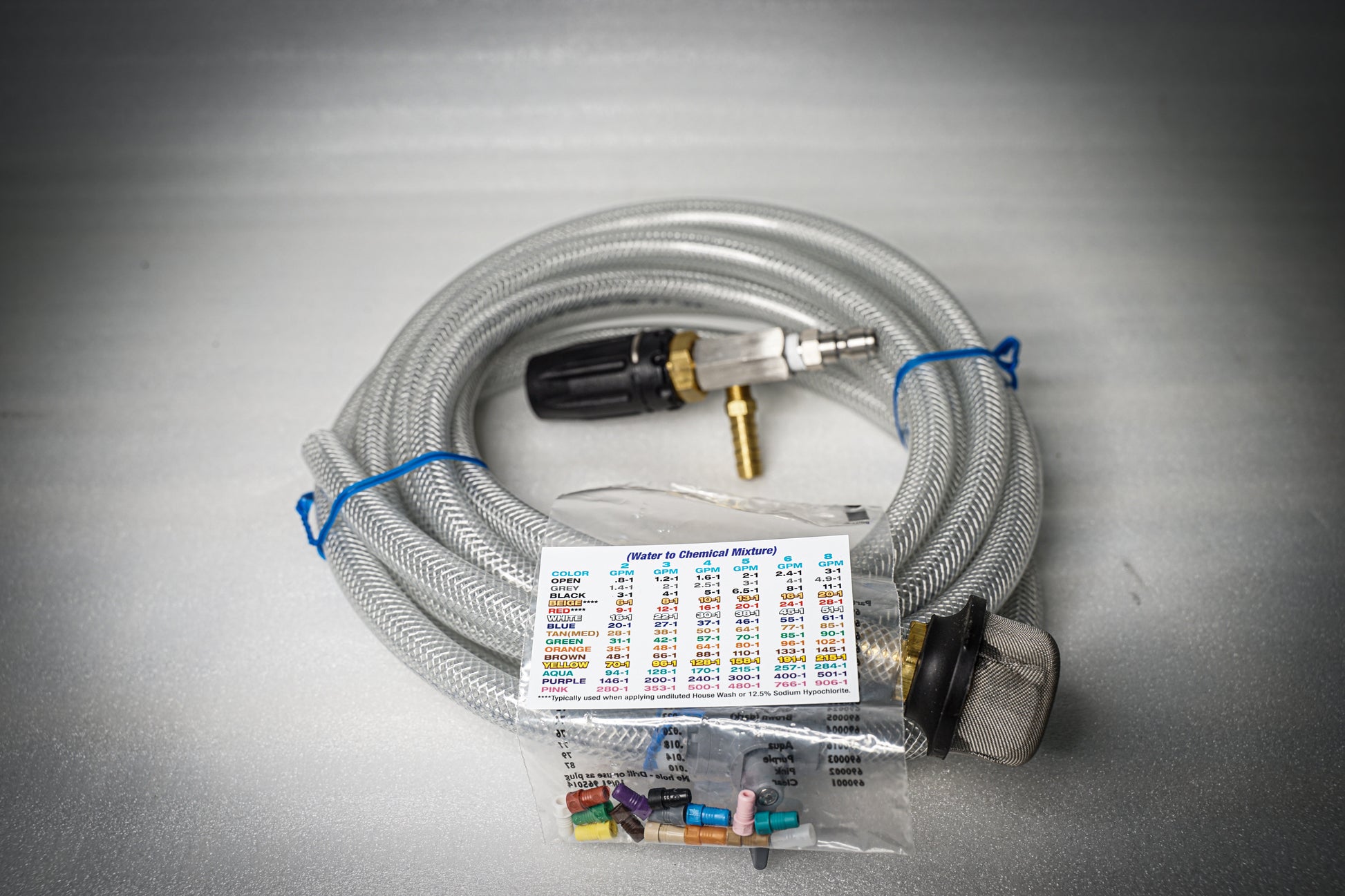

Includes:
- 15-foot X-Jet Suction Hose with hose barb
- Twist-adjust M5 nozzle for spray patterns between 5° and 60°
- Quick connect plug

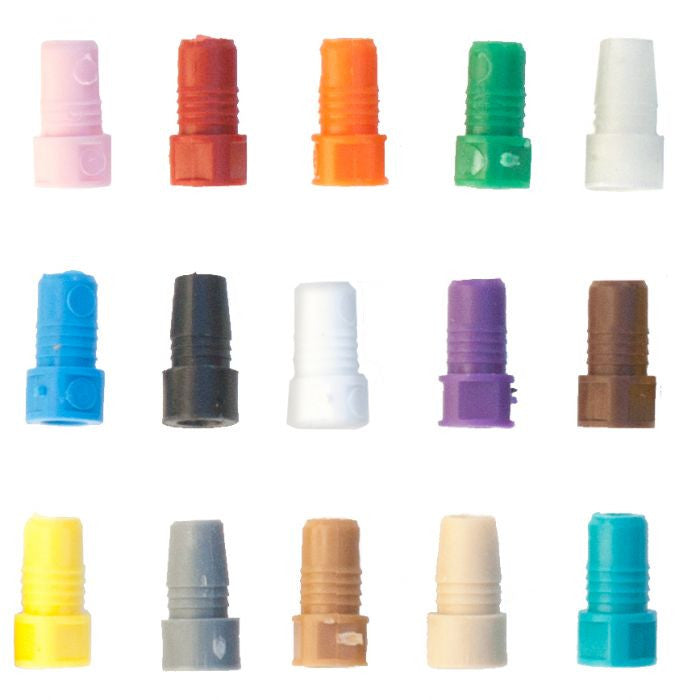

- 15-piece color-coded proportioner tip set

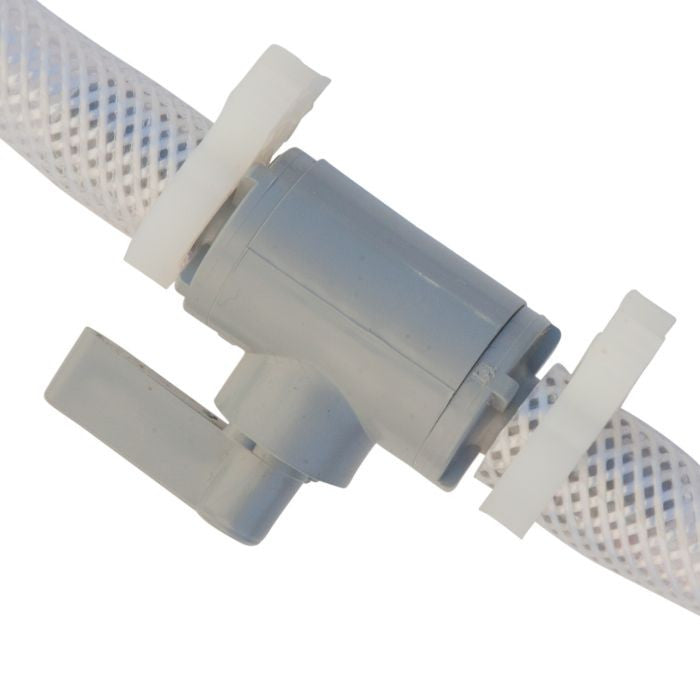

- Shut off ball valve

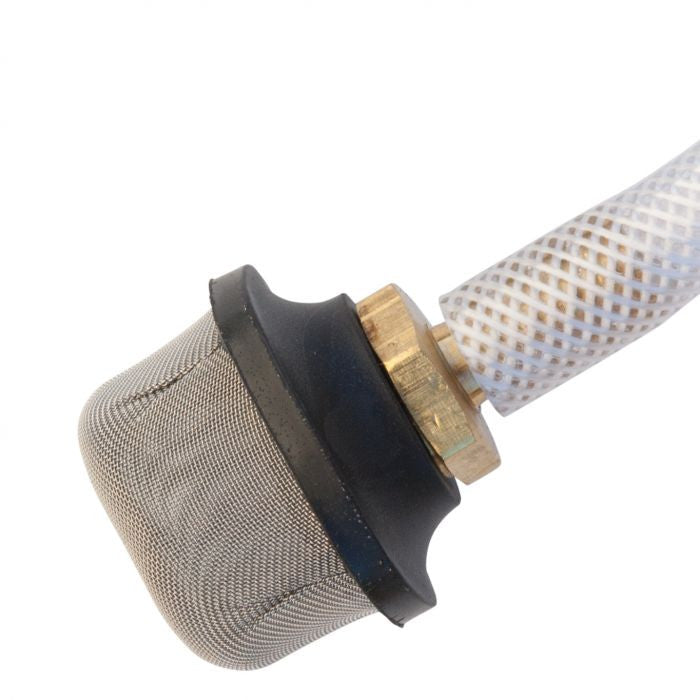

- Mushroom strainer
Additional specifications:
- Fully adjustable spray patterns
- Maximum pressure: 4000 PSI
- Maximum temperature: 190° F
- Inlet: 1/4" quick connect plug
- Chemical port: 1/8" MPT x 3/8" hose barb
- Projects chemicals up to 40 feet or more depending on pressure washer
- Apply soap and rinse with the same nozzle - just remove the chemical suction tube
- Great for power washing houses and other residential pressure washing tasks!
